Name:solar chager controller
Rated voltage:12V/24V Automatic voltage recognition
Max charge current:10A
Full charge cut:16.5V/33V
Low voltage cut:11V/22V
Low voltage restore:12.6V/25.2V

Product Description

Best quality solar controller for solar system

Description:

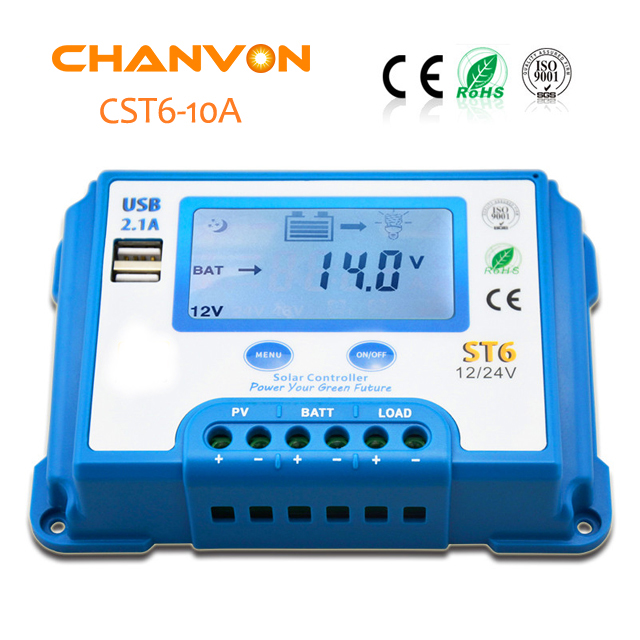

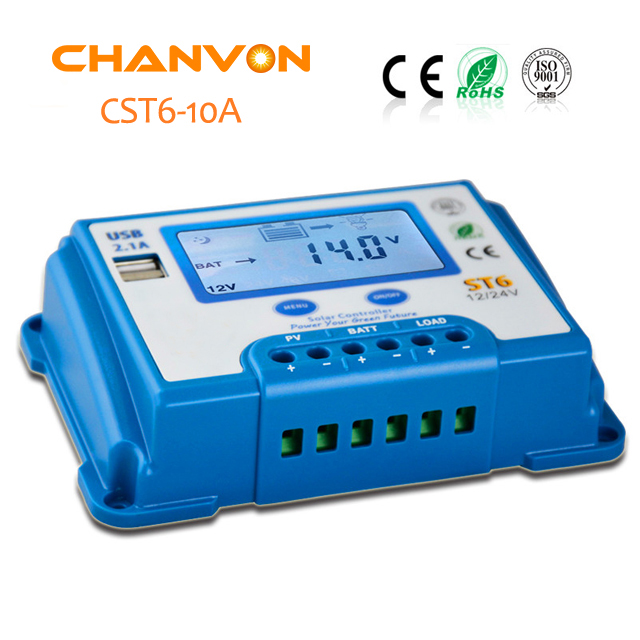

CST6 series solar controller, blue appearance, innovative design, using a big screen digital display with blue back light and 2 usb. This controller is suitable for all types of solar panels, various types of batteries, MCU (micro-controller) with a PWM (Pulse Width Modulation) 0 ~ 100% variable duty cycle process. To provide fast, optimum charging voltage and current according to the actual charging situation and the type of battery. Real-time display (LED lights) battery capacity. Safe, reliable and efficient.


Protection Features :

●Automatic Identification System Voltage, 12V/24V auto recognition;
●Applicable for a variety types of battery;

●Automatic recognition input voltage function;

●Microprocessor controller pulse width modulation (PWM) charge;

●Large-screen digital display with blue back light, easy to check at night;

●Sensor temperature compensated battery charging;

●Overload protection;

●Overcharge protection;

●Short circuit protection;

●Lightning protection;

●Reverse-discharge protection;

●Reverse polarity protection;

●Under-voltage protection.

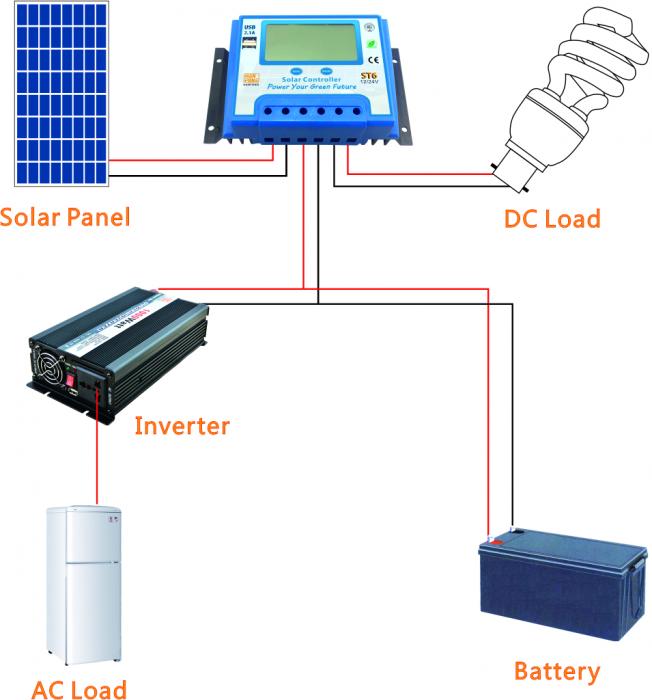

Applications:

Solar system.


Product details

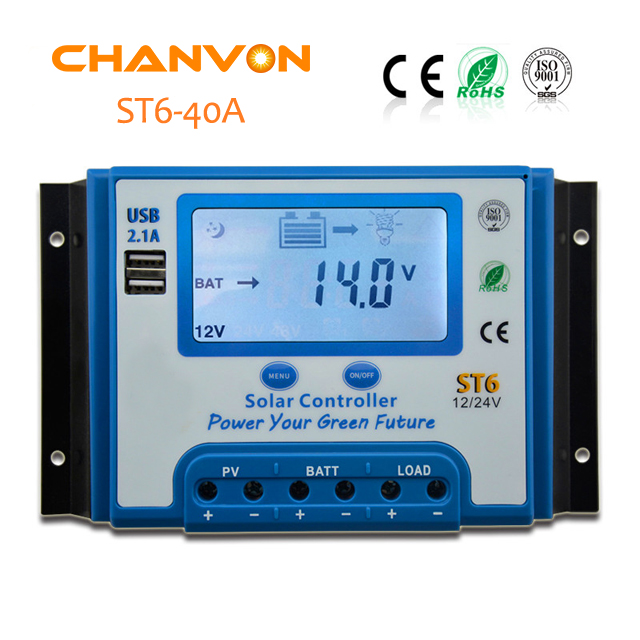

ModelCST6-10CST6-20CST6-30CST6-40CST6-50CST6-60
Rated voltage12V/24V Automatic voltage recognition
Max charge current10A20A30A40A50A60A
Max discharge current10A20A30A40A50A60A
Full charge cut16.5V/33V
Low voltage cut11V/22V
Low voltage restore12.6V/25.2V
Temperature compensation-3mv//cell
Static current≤45mA
Voltage drop<200mv<220mv<240mv<270mv<295mv
Wire area max4mm26mm310mm4
 Net Weight260g510g700g
Gross Wight14.43KG18.27KG20.67KG
Size150.70*99.76*39.38mm191.30*116.38*46.38mm199.89*28.45*54.50mm
Packing quantity40pcs/carton24pcs/carton24pcs/carton
Carton size172.90*108.11*46.80cm213.10*126.50*55.30cm222.50*136.50*63.3cm






Certificate:




                                                                    FAQ

Q1:Is it available for a sample?
A1:Sure, we accept sample order or trial order for testing first.

Q2: What's the price and MOQ?
A2:Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.

Q3: What's you delivery time?
A3:It depends on your quantity, but usually, within 7 days for sample order, 30 days for mass order

Q4: How about your payment and shipment?
A4:Payment: We accept T/T,terms of payment.
Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc.,for batch order, by sea or by air( through our forward)

Q5:How about your warranty?
A5:Normally,we provide Pure sine inverter 2 year warranty / Modified Inverter 1 year warranty

Q6.Do you have you own factory?
A6:Yes,we have 13 years factory mainly in vfd,sensors,inverter.
