Name:Pure sine ware power inverter with charger
power:150w
peak power:300w
frequency:50Hz or 60Hz
ware form:pure sine wave
input voltage:12V or 24V or 48V or 110V
output voltage:100/110/120VAC or 220/230/240 VAC

Product Description

Best quality Pure Sine Wave Power Inverter with Charger

Description:

Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.

This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.


Protection Features :

1.Undervoltage :LED red light, Buzzer alarm,automatic recovery

2.Overvoltage:LED red light,automatic recovery

3.Overload,High temperature: LED red light, automatic recovery

4.Shirt circuit protection

4.Reverse connect:Blown fuse


Charging UPS inverter ZCA series Advantage:

1. have charger can charge for batery, constant voltage and stable output,strong impact resistance,under 50℃ at full load

2. With 100% full power, efficiency reaching up to 95%

3. Protection: low-voltage,over voltage,over load,over temperature.

4. Isolated circuit,strong impact resistance,constant voltage and stable output,low-interference




Product details

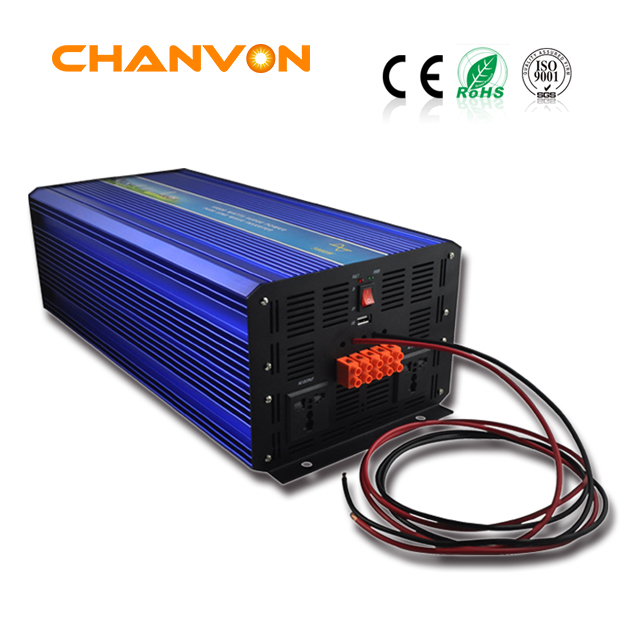

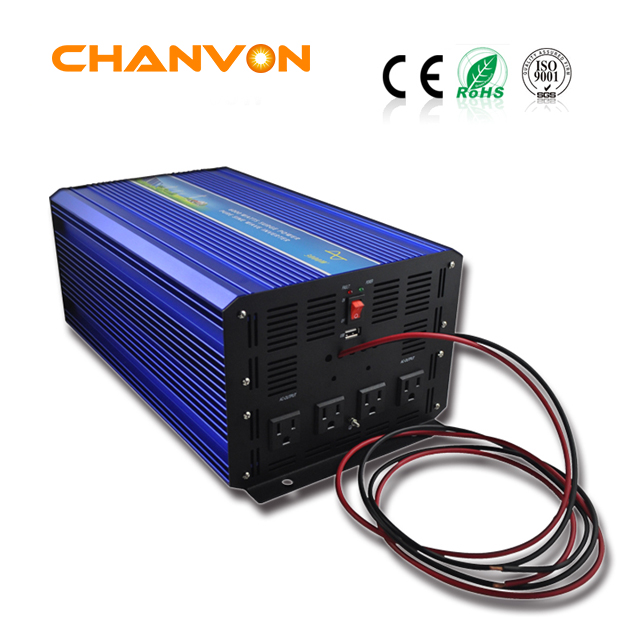

Pure Sine Wave Inverters with charger
Specification
ModelCZA150CZA300CZA500CZA600CZA800CZA1000
Inputvoltage12V or 24V or 48V or 110V
voltage range10-16VDC or 20-33VDC or 40-63VDC or 90-135VDC
no-load current< 0.5A<0.7A< 0.5A< 0.5A< 0.5A< 0.8A
efficiency> 90%
DC connectionCables With Clips or Car Adaptor
outputvoltage100/110/120VAC or 220/230/240 VAC
power150W300W500W600W800W1000W
peak power300W600W1000W1200W1600W2000W
wave formpure sine wave
frequency50Hz or 60Hz
waveform distortion3%
Environmentworking temperatureBetween -10℃ and +50℃
humidity20%~90%RH non-condensing
storing temperature Between -30℃ and +70℃
Packing(L*W*H)mm180*105*60200*105*60265*165*85265*165*85300*165*85335*165*85
NW KG0.860.862.52.52.73.3
GW KG1.131.13333.13.9
Packing size275*160*113275*160*113365*230*148365*230*148400*230*148430*230*148
Specification
ModelCZA1500CZA2000CZA3000CZA4000CZA5000CZA6000
Inputvoltage12V or 24V or 48V or 110V
voltage range10-16VDC or 20-33VDC or 40-63VDC or 90-135VDC
no-load current<0.8A< 1.1A< 2A< 2A< 2A< 2.5A
efficiency> 90%
DC connectionCables With Clips or Car Adaptor
outputvoltage100/110/120VAC or 220/230/240 VAC
power1500W2000W3000W4000W5000W6000W
peak power3000W4000W6000W8000W10000W12000W
wave formpure sine wave
frequency50Hz or 60Hz
waveform distortion3%
Environmentworking temperatureBetween -10℃ and +50℃
humidity20%~90%RH non-condensing
storing temperature Between -30℃ and +70℃
Packing(L*W*H)mm385*165*85465*165*85425*217*153425*217*153520*217*153550*217*153
NW KG3.85.19.7510.2513.114.25
GW KG4.65.411.812.415.516.8
Packing size470*230*148560*230*148515*300*230515*300*230605*300*230635*300*230








The field of application

1.Power frequency alternating current (ac)off-grid power generation system .
Use for home :TV, computer,audio equipment ,washing machines,electric lights,rice cookers, refrigerators, fans, air conditioning and other household appliances.
Use for office:computer,printers, fax machines, projectors, money detector...



2.No power frequency alternating current (ac) off-grid power generation system

hand drill, impact drill, scrubbing machine, punching machine, electric saw, air
compressor, emergency lighting, surgical lighting and so on.



3.Vehicle-mounted mobile office and RV life
mobile phones, PAD, DVD, GPS, fans, notebooks, monitors, printers, audio
equipment and so on.



4.Isolated emergency power generation system applications

Emergency lighting, vehicle rescue, camping electrical equipment, medical ambulance vehicle equipment, ship related equipment...
