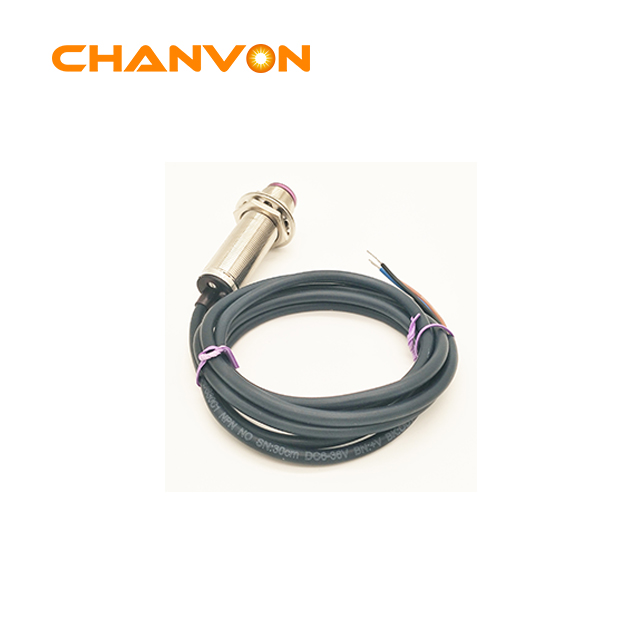

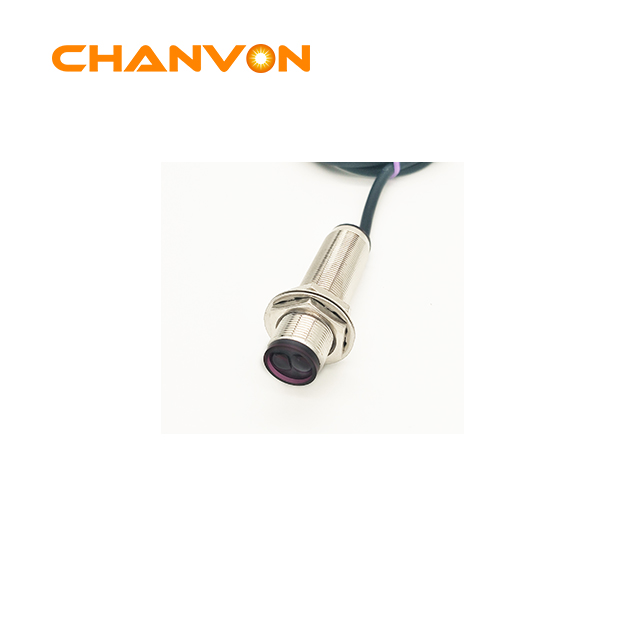

Name: | G3FJ-DS30B1 DISFFUSE REFLECTIVE NPN NO PHOTOELECTRIC SENSOR |
---|---|
MODEL: | G3FJ-DS30 |
NAME: | G3FJ-DS30B1 |
OUTPUT FORM: | DIFFUSE RELECTIVE |
CATAGORY: | PHOTOELECTRIC SENSOR |
IP GRADE: | IP 54 |
DETECT DISTANCE: | 10MM+-15 |
DIMENSION: | 30MM |
LENGTH: | 1.5M |
RESPONSE FREQUENCY: | 400HZ |
DETECT SUBJECT: | METAL |
Product Description
TECHNICAL DATA
Output form | Diffuse reflective | Retro reflective | Through-beam | ||
3-wire DC 10-30V | NPN | NO | G3FJ-DS10C1 G3FJ-DS30C1 | G3FJ-R2C1 | G3F-5C1 |
NC | G3FJ-DS10C2 G3FJ-DS30C2 | G3FJ-R2C2 | G3F-5C2 | ||
NO+NC | G3FJ-DS10C4 G3FJ-DS30C4 | G3FJ-R2C4 | |||
PNP | NO | G3FJ-DS10B1 G3FJ-DS30B1 | G3FJ-R2B1 | G3F-5B1 | |
NC | G3FJ-DS10B2 G3FJ-DS30B2 | G3FJ-R2B2 | G3F-5B2 | ||
NO+NC | G3FJ-DS10B4 G3FJ-DS30B4 | G3FJ-R2B4 | |||
2-wire AV 100-240V | NO | G3FJ-DS10A1 G3FJ-DS30A1 | G3FJ-R2A1 | G3F-5A1 | |
NC | G3FJ-DS10A2 G3FJ-DS30A2 | G3FJ-R2A2 | G3F-5A2 | ||
Sensing distance | 10mm±15% | 2M | 5M |
PRODUCT DETAIL
ABOUT CHANVON
CERTIFICATE
APPLICATIONS
Exhibition Show
Packing&Shipment
FQA
1 Q. What are proximity switches used for?
A. Proximity sensor is a device able to detect the presence of nearby objects without any physical contact. A proximity sensor often emits an electromagnetic field or a beam of electromagnetic radiation (infrared, for instance), and looks for changes in the field or return signal.
2 Q.What factors are needed to recommend a right model for buyer?
A. Inductive sensors use a magnetic field to detect objects. ... In order to be sensed by a capacitive sensor the target doesn't need to be conductive. Capacitive proximity sensors can detect both metallic and non-metallic targets in powder, granulate, liquid, and solid form.
3 Q.What's your warranty?
A. Inductive proximity sensors are used for non-contact detection of metallic objects. Their operating principle is based on a coil and oscillator that creates an electromagnetic field in the close surroundings of the sensing surface.
4 Q.Can Inductive sensors detect aluminum?
A. Other metallic materials, such as stainless steel, brass, aluminum, and copper, have different influences over the inductive effect. Nonferrous sensors will detect metals such as aluminum better than they sense iron, while all-metal sensors will pick up on all kinds of metal at the same sensing distance.
5 Q.How does a photoelectric sensor work?
A. Typically, this means either non-detection or detection of the sensor's emitted light source. The type of light and method by which the target is detected varies depending on the sensor. Photoelectric sensors are made up of a light source (LED), a receiver (phototransistor), a signal converter, and an amplifier.
6 Q.Can I have a sample order?
A. Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
7 Q.What factors are needed to recommend a right model for buyer?
A. There are many factors, mainly detection subject's material, shape, dimension; site electric &mounting& working condition, moving direction, deviation range, wiring, etc,.
8 Q. What's your warranty?
A.Usually 12 months, the guaranty is different from different types,pls contact sales for information.
9 Q. Is OEM/ODM service available?
A. Yes, We accept OEM and ODM orders.
10 Q. What's your warranty?
A. Generally 5-30 days for production, you can contact sales for delivery.
