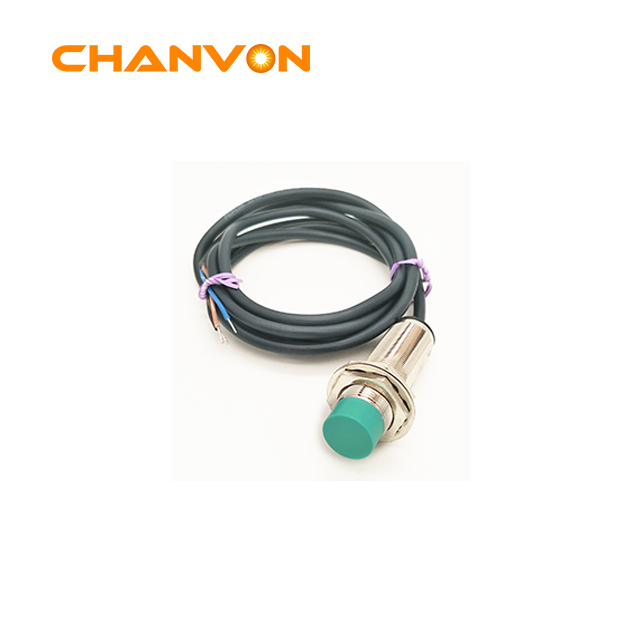

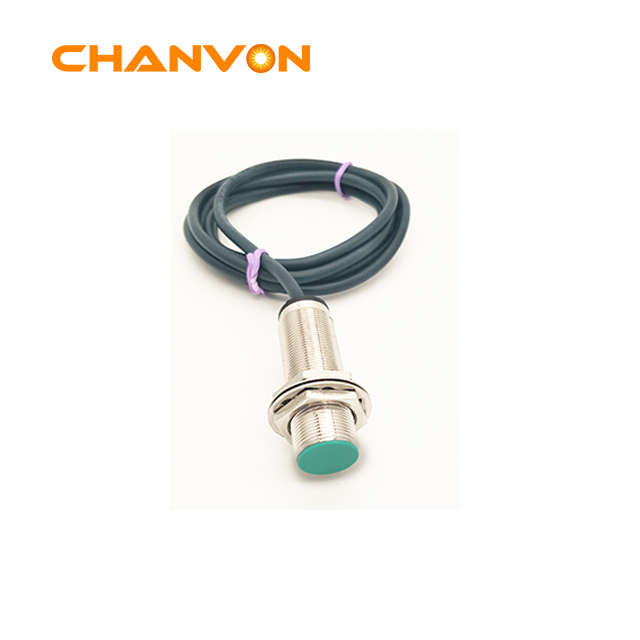

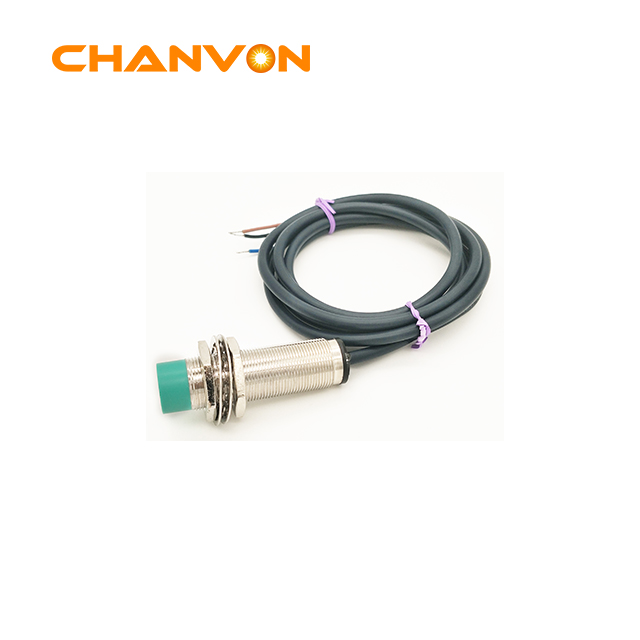

| Name: | GE12-4P1 PNP NO NON-FLUSH PROXIMITY SWITCH |
|---|---|
| MODEL: | GE 12 SERIES |
| NAME: | GE12-4P1 |
| OUTPUT FORM: | PNP NO |
| TYPE: | NON-FLUSH |
| IP GRADE: | IP54 |
| RESPONSE: | ＜1V |
| OUTPUT LIMIT: | 300mA |
| DETECT DISTANCE: | 4MM+-10 |
| OUTER DIAMETER: | 12MM |
| LENGTH: | 41MM |
Product Description
MODEL
GE12 SERIES
| Ouput form | Flush | Non-Flush | ||
3-wire DC10 - 30V | NPN | NO | GE12-2N1 | GE12M-4N1 |
| NC | GE12-2N2 | GE12M-4N2 | ||
| NO+NC | GE12-2N4 | GE12M-4N4 | ||
PNP | NO | GE12-2P1 | GE12M-4P1 | |
| NC | GE12-2P2 | GE12M-4P2 | ||
| NO+NC | GE12-2P4 | GE12M-4P4 | ||
2-wire DC10-30V | NO | GE12-2D1 | GE12M-4D1 | |
| NC | GE12-2D2 | GE12M-4D2 | ||
2-wire AC100-240V | NO | GE12-2A1 | GE12M-4A1 | |
| NC | GE12-2A2 | GE12M-4A2 | ||
| Sensing distance | 2mm±10% | 4mm±10% | ||
Dimension
Diagram
